Introduction to MIP LED Display
In the fast-paced world of visual technology, the MIP LED Display has emerged as a groundbreaking innovation, setting new standards for quality and performance. Short for “Mobile In-Plane Switching,” MIP technology integrates advanced features that significantly enhance display capabilities. This cutting-edge technology combines the benefits of traditional LED displays with modern advancements, resulting in vibrant colors, high resolutions, and unparalleled viewing experiences.
Whether in retail environments, corporate settings, or entertainment venues, the MIP LED Display offers a versatile solution that addresses the needs of businesses and creators alike. As we delve deeper into the features, benefits, and applications of MIP LED Displays, we will uncover why this technology is becoming the preferred choice for many.

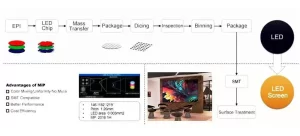

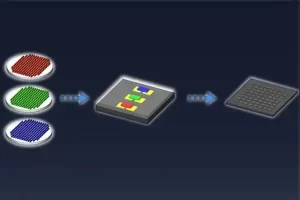

Innovative packaging: MIP technology uses a novel packaging architecture to combine Micro LED with flip-chip equipment to achieve superior performance and reliability.
Improve yield: Precise packaging processes improve manufacturing yields, reduce defects, and ensure consistent quality.
Reduce costs: By optimizing material usage and simplifying the manufacturing process, MIP technology reduces production costs, making high-quality Micro LED displays more affordable.
Improve efficiency: MIP technology improves overall efficiency, providing brighter displays, lower power consumption, and better thermal management.

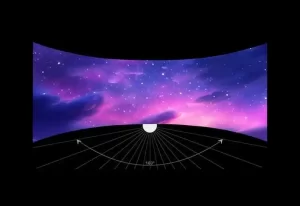

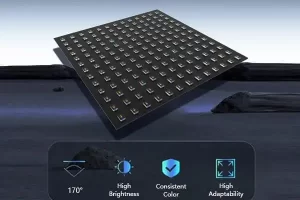

Another remarkable feature of the MIP LED Display is its wide viewing angles. Traditional LED displays often suffer from color distortion and contrast loss when viewed from off-angles. However, MIP technology addresses this issue by maintaining consistent image quality across a wide range of perspectives.
This feature is particularly beneficial in public spaces like shopping malls, airports, and stadiums, where viewers can be positioned at various angles relative to the screen. The ability to maintain image clarity and color consistency ensures that all audiences receive an optimal viewing experience, regardless of their position.

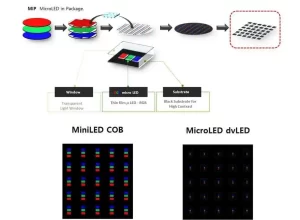

MIP technology comprises two key paths: MicroLED In Package and MiniLED In Package. Here’s a breakdown:
MicroLED In Package (MiP): Covers products with pixel pitches from P0.3 to P0.7mm.
MiniLED In Package: Covers products with pixel pitches from P0.6 to P1.8mm.

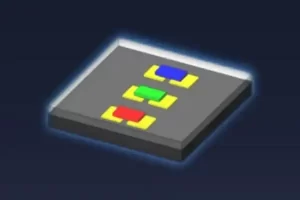

MIP technology employs smaller light-emitting chips, achieving enhanced narrow pixel pitch displays. Paired with flip-chip and common cathode technologies, it effectively boosts product stability and reduces energy consumption.
Additionally, special black coating technology improves color and black uniformity while providing low glare, low reflection, and minimal Moiré patterns.
Thanks to advanced black coating technology, the MIP LED Display achieves a high contrast ratio of 10,000:1. This facilitates distinct and intricate levels between bright and dark areas on the display, enhancing visual depth and clarity.
Combined with support for a 110% NTSC color gamut, the result is a lifelike visual experience that captivates the audience with vibrant and true-to-life colors.

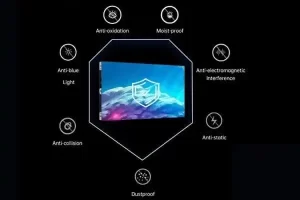

The MIP series excels in various complex environments due to its seven-tier protection system, which includes features such as:
Dustproof: Resists dust and debris accumulation.
Moist-proof: Protects against humidity and moisture damage.
Anti-collision: Designed for durability in high-traffic areas.
Anti-static: Reduces the risk of damage from static electricity.
Blue Light Filtering: Minimizes eye strain for viewers.
These features make MIP displays suitable for challenging environments, such as subway interior tracks, demonstrating remarkable product reliability and significantly extending product lifespan.
The MIP LED Display utilizes common cathode and flip-chip technologies, as well as energy-saving driver chips, significantly decreasing power consumption by approximately 35%. This makes MIP displays an energy-efficient choice for businesses looking to reduce operational costs while maintaining high-quality visuals.

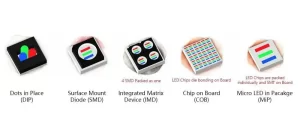

MiP technology follows a common procedure for LED packaging, which has evolved through various stages of development. Understanding the history of LED display package technology provides insight into the advancements leading to modern MIP displays.
DIP (Dual In-line Package): The oldest method, offering high brightness and heat dissipation, but large size and low resolution, mostly used for outdoor displays.
SMD (Surface Mounted Device): The most widely adopted today, enabling smaller sizes and better color mixing, but lower brightness and higher cost, primarily for indoor displays.
IMD (Integrated Matrix Device): A newer approach combining SMD and COB advantages, providing better protection and contrast, but facing high cost and low yield challenges.
COB (Chip on Board): Directly mounting LED chips on the PCB, achieving ultra-small pixel pitch and excellent protection, yet costly and difficult to repair.
MIP, or MicroLED in Package, displays represent the cutting edge of display technology. This approach utilizes microscopic LEDs to create individual pixels, delivering unparalleled brightness and contrast. MIP displays are increasingly popular in high-end TVs and large-format displays, providing a visual feast for the most discerning viewers.
When comparing MIP technology to COB technology, several benefits emerge:
99% Black with MicroLED dvLED: MIP technology achieves deeper blacks and better uniformity.
Smaller Fill Factor: This results in more deep blacks and better white color consistency.
Higher Yield Rate: MIP boasts an impressive yield rate of >99.99999%, improving production efficiency by three times compared to COB methods.
Lower Manufacturing Costs: MIP technology can reduce fabrication costs by one-third.
MIP series displays support various resolutions, including 2K, 4K, and 8K, with a perfect 16:9 display ratio. They can be seamlessly spliced into standard resolutions, ensuring flexibility for various applications.
Additionally, MIP displays achieve brightness levels of over 2000 nits, making them three times brighter than competing technologies, which typically range from 600 to 800 nits.

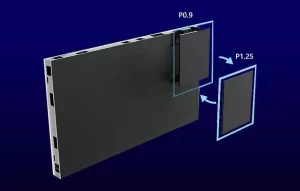

Universal LED panel for all pixels One Platform, upgradation Faster & Easier
The versatility of MIP LED Displays is revolutionizing diverse industries. Retailers, event organizers, entertainment, corporate settings, and education all benefit from the transformative capabilities of this technology. From captivating shoppers and engaging audiences to enabling clear communication and fostering student learning, MIP displays are redefining the way organizations connect with their target audiences.
" Customer Testimonials:
Discover the potential of Micro LED display technology and its impact on the visual display industry. Learn about the benefits, applications, and future prospects of micro LED displays.
No videos available.
| Pixel Pitch | 0.625 mm | 0.9375 mm | 1.25 mm | 1.5625 mm |
| LED Type | MIP | MIP | MIP | MIP |
| Pixel Density | 2,560,000 dots/m2 | 1,137,777 dots/m2 | 640,000 dots/m2 | 409,600 dots/m2 |
| Cabinet Size (W x H x D) | 23.6 in. x 13.3 in. x 1.5 in. | 23.6 in. x 13.3 in. x 1.5 in. | 23.6 in. x 13.3 in. x 1.5 in. | 23.6 in. x 13.3 in. x 1.5 in. |
| Cabinet Resolution | 960 (W) x 270 (H) | 640 (W) x 360 (H) | 480 (W) x 270 (H) | 384 (W) x 216 (H) |
| Cabinet Weight | 11.46 lbs. | 11.46 lbs. | 11.46 lbs. | 11.46 lbs. |
| Calibrated Brightness (nits) | 800 nits | 1200 nits | 1200 nits | 1200 nits |
| Viewing Angle | Horizontal: 160°±10 ; Vertical: 160°±10 | Horizontal: 160°±10 ; Vertical: 160°±10 | Horizontal: 160°±10 ; Vertical: 160°±10 | Horizontal: 160°±10 ; Vertical: 160°±10 |
| Refresh Rate (Hz) | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
| Contrast Ratio | 10,000:1 | 12,000:1 | 12,000:1 | 12,000:1 |
| Input Voltage | AC 100V-240V, 50/60Hz | AC 100V-240V, 50/60Hz | AC 100V-240V, 50/60Hz | AC 100V-240V, 50/60Hz |
| Maximum Power | 70 W/Cabinet; 346 W/m2 | 120 W/Cabinet; 592 W/m2 | 120 W/Cabinet; 592 W/m2 | 120 W/Cabinet; 592 W/m2 |
| Average Power | 25 W/Cabinet; 123 W/m2 | 42 W/Cabinet; 207 W/m2 | 42 W/Cabinet; 207 W/m2 | 42 W/Cabinet; 207 W/m2 |
Discover the potential of Micro LED display technology and its impact on the visual display industry. Learn about the benefits, applications, and future prospects of micro LED displays.
LED display module is composed of LED lights, PCB circuit boards, driver ICs, resistors, capacitors, and plastic kits.
