MIP LED display means "Micro LED in Package", which is a new packaging technology based on Nationstar Mini LED or Micro LED panels (such as P0.78125, P0.9375, P1.25 and P1.5625). The LED cabinet size is 600mmx337.5mm using a 16:9 ratio.
MIP LED display. This is a bright and energy-efficient option. It has wide viewing angles and a high refresh rate. It has the best contrast so far.
Näytä tiedotUpto Upto 3840Hz
Laajat katselukulmat
Suorakulmainen liitos
Erittäin ohut paksuus
Magneettisen imun asennus
Etuosan huolto
Alumiini
6.5kg/pc
Technological innovation
High-quality lamp beads
Auto brightness adjustment
Energy saving
Ultra-light and thin
Multiple choices
Lower power consumption and higher contrast
MIP technology and low rework costs
Optional higher brightness and wide viewing angle
| Pixel Pitch | 0.625 mm | 0.9375 mm | 1.25 mm | 1.5625 mm |
| LED Type | MIP | MIP | MIP | MIP |
| Pixel Density | 2,560,000 dots/m2 | 1,137,777 dots/m2 | 640,000 dots/m2 | 409,600 dots/m2 |
| Cabinet Size (W x H x D) | 23.6 in. x 13.3 in. x 1.5 in. | 23.6 in. x 13.3 in. x 1.5 in. | 23.6 in. x 13.3 in. x 1.5 in. | 23.6 in. x 13.3 in. x 1.5 in. |
| Cabinet Resolution | 960 (W) x 270 (H) | 640 (W) x 360 (H) | 480 (W) x 270 (H) | 384 (W) x 216 (H) |
| Cabinet Weight | 11.46 lbs. | 11.46 lbs. | 11.46 lbs. | 11.46 lbs. |
| Calibrated Brightness (nits) | 600 nits | 1000 nits | 1000 nits | 1000 nits |
| Viewing Angle | Horizontal: 160°±10 ; Vertical: 160°±10 | Horizontal: 160°±10 ; Vertical: 160°±10 | Horizontal: 160°±10 ; Vertical: 160°±10 | Horizontal: 160°±10 ; Vertical: 160°±10 |
| Refresh Rate (Hz) | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
| Contrast Ratio | 10,000:1 | 12,000:1 | 12,000:1 | 12,000:1 |
| Input Voltage | AC 100V-240V, 50/60Hz | AC 100V-240V, 50/60Hz | AC 100V-240V, 50/60Hz | AC 100V-240V, 50/60Hz |
| Maximum Power | 70 W/Cabinet; 346 W/m2 | 120 W/Cabinet; 592 W/m2 | 120 W/Cabinet; 592 W/m2 | 120 W/Cabinet; 592 W/m2 |
| Average Power | 25 W/Cabinet; 123 W/m2 | 42 W/Cabinet; 207 W/m2 | 42 W/Cabinet; 207 W/m2 | 42 W/Cabinet; 207 W/m2 |
LED Module Workshop
LED Module Sample Debug
LED Module Test
LED Module Packaging

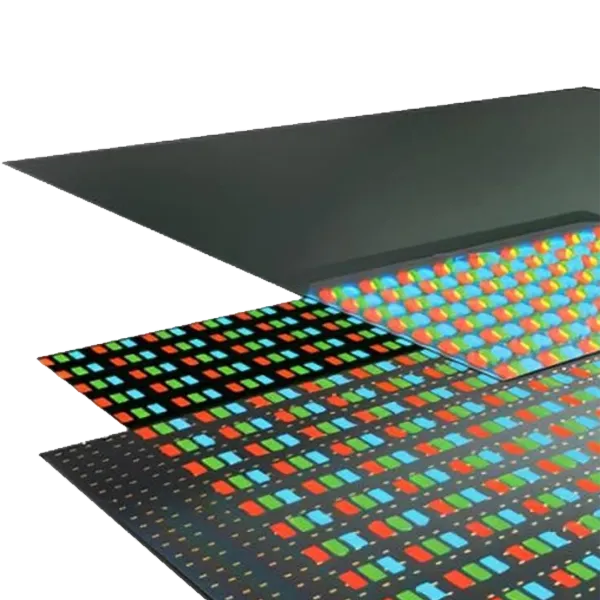

MiP stands for Micro LED in Package and is a new LED packaging technology based on Micro LED. MiP technology cuts Mini/Micro LED panels into small pieces and packages each piece individually. It increases yields and significantly reduces the cost of LED display manufacturing.
The key advantages of MIP LED display modules are their power efficiency, high visibility, simplified design, and versatility. The bistable, matrix-addressed technology provides an energy-efficient, high-performance display solution suitable for a wide range of applications.
Sisätilojen LED-näyttöjen asentaminen seinälle vaatii huolellista suunnittelua ja toteutusta. Tässä ovat yleiset vaiheet onnistuneen asennuksen varmistamiseksi.
Tips for maintaining the longevity and performance of indoor LED displays include proper ventilation, regular
cleaning and dusting, monitoring ambient temperatures, avoiding direct sunlight, using climate control systems, maintaining a stable power supply, following manufacturer guidelines, and conducting regular visual inspections.LISÄÄ++
Indoor LED displays are widely used in the retail environment to enhance the shopping experience, attract customers, and promote products or services. Retailers can use LED displays for various purposes, including digital signage, advertising, branding, product promotion, navigation, digital menu boards, entertainment, and in-store promotions. LED displays offer a visually engaging medium to communicate with customers, showcase products, and create a memorable shopping experience. With dynamic and interactive content, retailers can strategically place LED displays to promote products, offers, and brand image. LED displays provide a flexible, cost-effective, and impactful medium to reach the target audience and drive sales with eye-catching messages. Ultimately, indoor LED displays aim to deliver an immersive, personalized, and stimulating shopping experience, resulting in increased engagement and customer satisfaction.
Opi sisä- ja ulkokäyttöön tarkoitettujen LED-näyttöjen tärkeimmät erot. Kirkkaustaso, pikselitiheys, IP-suojausluokka ja hinta ovat ratkaisevia huomioon otettavia tekijöitä. Sisänäytöt vaativat alhaisemman kirkkaustason ja hienomman pikselitiheyden, kun taas ulkonäytöt tarvitsevat korkeamman kirkkaustason, suuremman pikselitiheyden sekä vedenpitävyyden ja pölytiiviyden. Hinta vaihtelee koon, resoluution ja materiaalien mukaan. Valitse tarpeisiisi sopivin LED-näyttö ottamalla huomioon nämä tekijät.LISÄÄ++
ReissDisplay on ammattimainen LED-näyttöjen valmistaja ja ratkaisujen toimittaja, joka on sitoutunut tulemaan globaaliksi johtajaksi LED-videoseinäratkaisuissa. Keskitymme toimittamaan korkealaatuisia, räätälöityjä ja kestäviä tuotteita, jotka vastaavat monipuolisiin tarpeisiin ja auttavat asiakkaitamme saavuttamaan erinomaisia visuaalisia kokemuksia.
