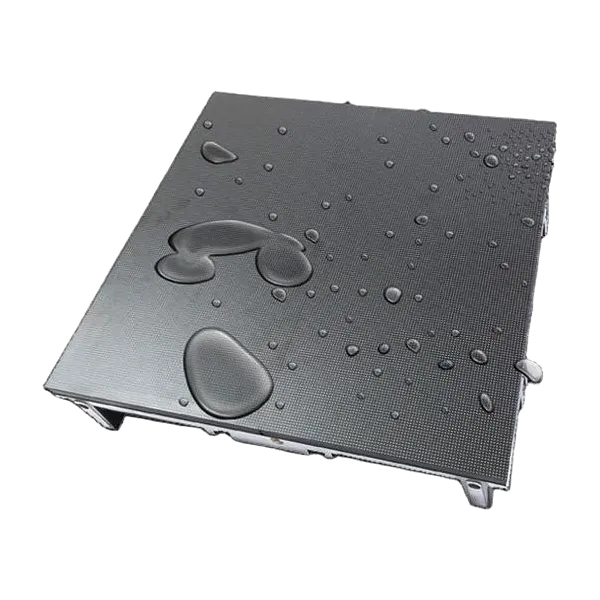

COB LED Display Module

COB LED display modules represent a significant advancement in display technology, offering high brightness, excellent thermal management, and compact design.

  • COB LED Display Module

    COB-sarja

    The COB LED Display (Chip On Board Light Emitting Diode) is a revolutionary advancement in display technology that offers unparalleled visual performance and reliability. By employing professional COB correction technology, this display solution optimizes color accuracy, enhances image quality, and provides a range of benefits that make it an ideal choice for various applications. In this article, we will explore the key features, advantages, and applications of the COB LED Display.

    Näytä tiedot

COB LED Display Module Features

  • Upto Upto 3840Hz

  • Laajat katselukulmat

  • Suorakulmainen liitos

  • Erittäin ohut paksuus

  • Magneettisen imun asennus

  • Etuosan huolto

  • Alumiini

  • 20 kg/kpl

Ominaisuuden kuvaus

  • Technological innovation

  • High-quality lamp beads

  • Auto brightness adjustment

  • Energy saving

  • Ultra-light and thin

  • Multiple choices

Erilaisia paneelikokoja ja -painoja

  • Outdoor LED Display Panel 0.8KG

  • Indoor LED Display Module 0.25KG

  • Rental LED Module 0.5KG

  • Front Service LED Display Panel 0.45KG

  • Flexible LED Display Module 0.22KG

Tekniset tiedot

Pixel pitch（mm） 0.62mm 0.78mm 0.93mm 1.25mm 1.5mm 1.87mm
LED Package COB COB COB COB COB COB
Brightness(nits) 600/1000 nits 600/1000 nits 600/1000 nits 600/1000 nits 600/1000 nits 600/1000 nits
Viewing Angle(H/V) 160°/160° 160°/160° 160°/160° 160°/160° 160°/160° 160°/160°
Pixel Density(m2) 2560,000/m2 1638,400/m2 1137,777/m2 640,000/m2 409,600/m2 284,444/m2
Refresh Rate(HZ) 3840 Hz 3840 Hz 3840 Hz 3840 Hz 3840 Hz 3840 Hz
Frame rate 60Hz 60Hz 60Hz 60Hz 60Hz 60Hz
Color temperature 3000k-9300K 3000k-9300K 3000k-9300K 3000k-9300K 3000k-9300K 3000k-9300K
Unit size 600×337.5x75mm 600×337.5x75mm 600×337.5x75mm 600×337.5x75mm 600×337.5x75mm 600×337.5x75mm
Unit size 23.6” x 13.26” x 1.55” 23.6” x 13.26” x 1.55” 23.6” x 13.26” x 1.55” 23.6” x 13.26” x 1.55” 23.6” x 13.26” x 1.55” 23.6” x 13.26” x 1.55”
Unit weight 4kg / 8.8 lbs 4kg / 8.8 lbs 4kg / 8.8 lbs 4kg / 8.8 lbs 4kg / 8.8 lbs 4kg / 8.8 lbs
Power Con(Max/panel) 95w/㎡ 85w/㎡ 75w/㎡ 70w/㎡ 70w/㎡ 65w/㎡
Input Voltage(AC) 110V / 240V, 50/60 HZ 110V / 240V, 50/60 HZ 110V / 240V, 50/60 HZ 110V / 240V, 50/60 HZ 110V / 240V, 50/60 HZ 110V / 240V, 50/60 HZ
Working temperature -10°~40°C/10%-90%RH -10°~40°C/10%-90%RH -10°~40°C/10%-90%RH -10°~40°C/10%-90%RH -10°~40°C/10%-90%RH -10°~40°C/10%-90%RH
IP Rating IP54/IP31 IP54/IP31 IP54/IP31 IP54/IP31 IP54/IP31 IP54/IP31
Lifespan 100,000 hrs 100,000 hrs 100,000 hrs 100,000 hrs 100,000 hrs 100,000 hrs
Warranty 24 months 24 months 24 months 24 months 24 months 24 months

LED Display Module Components

  • LED-Module-Workshop

    LED Module Workshop

  • LED Module Sample Debug

  • LED Module Test

  • LED Module Packaging

Asennus- ja käyttövideo

Ohje ja kysymykset ja vastaukset

What is the Difference From Traditional LED SMD Technology?

1.The flip-chip COB package uses Mini/Micro LED chips.
2.t is directly integrated and packaged on the PCB board through solid crystal and molding methods.
3.Simplified the packaging process of the entire chip without soldering.
4.The original SMD reflow soldering and other processes are cancelled, completely solves the failure problem caused by soldering.
5.Better the protective performance and longer the product life span.
6.Lower deadlamp rate, smaller pitch, higher resolution.

What is COB LED Display?

COB LED displays utilize Chip-on-Board technology, where the individual LED chips are directly mounted onto a circuit board without individual packaging. This provides several advantages:

Compact and space-saving design
High pixel density for improved resolution and image quality
Uniform lighting across the display surface
Efficient heat dissipation for better performance and longevity
Improved energy efficiency

The compact design and high density of COB LED displays make them well-suited for indoor applications requiring high resolution and image quality, such as digital signage, commercial displays, and indoor advertising.

Indoor LED Display User Guide LISÄÄ++

17 Indoor LED Displays

Kuinka asentaa sisätilojen LED-näyttöruudut seinälle

Sisätilojen LED-näyttöjen asentaminen seinälle vaatii huolellista suunnittelua ja toteutusta. Tässä ovat yleiset vaiheet onnistuneen asennuksen varmistamiseksi.

Common Q&A on COB LED Display Module

  • What are the maintenance requirements for COB LED display modules?

COB LED display modules generally require minimal maintenance. Regular cleaning of the surface and ensuring proper ventilation/cooling are the primary maintenance tasks. With proper care, COB LED display modules can provide reliable performance for many years.LISÄÄ++

  • What are the key advantages of COB LED display modules?

    The main advantages of COB LED display modules include:

    – Compact and space-saving design
    – High pixel density for improved resolution
    – Uniform brightness and color across the display
    – Efficient heat dissipation for reliable performance
    – Plug-and-play installation for easy deployment.LISÄÄ++

  • How do you calculate the pixel pitch and resolution of a COB LED display module?

    The pixel pitch is determined by the distance between the centers of adjacent LED pixels. This can be calculated by dividing the module size by the number of pixels. The resolution is then determined by the number of pixels in the module’s width and height.LISÄÄ++
