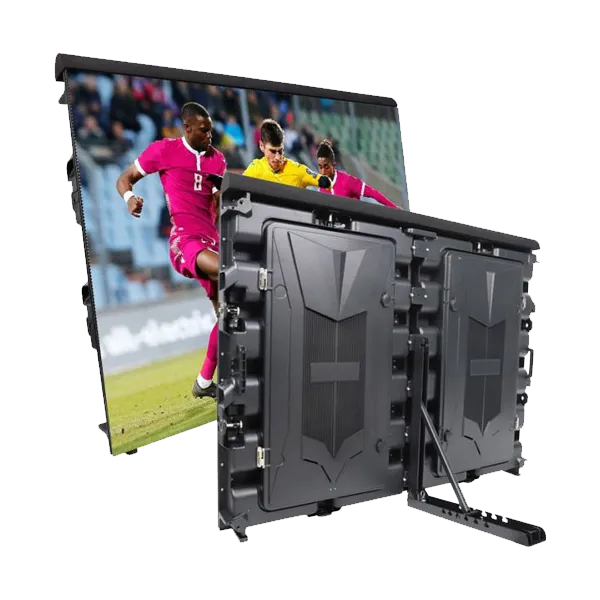

ReissDisplay Stadium LED Displays: Engineered for high-impact visibility and durability, OES-MX Series LED displays feature pixel pitches P3mm / P4mm / P5mm / P6.67mm / P8mm / P10mm, IP65 waterproofing, and ultra-bright 140° wide-viewing angles for seamless visuals in any stadium. Built with shockproof MG alloy cabinets, soft protective films, and EVA padding to safeguard athletes, they combine ruggedness with precision. Ideal for live broadcasts, ads, and dynamic scoreboards, our screens support wireless control, real-time content updates, and easy installation via lightweight, portable designs. Perfect for football/basketball courts, they deliver crisp imagery, sponsor flexibility, and uninterrupted performance in all weather conditions.
· Pixel pitch 3mm/4mm/5mm/6.67mm/8mm/10mm
· Module size 320*160mm
· 1280*960mm/960*960mm/640*960mm cabinet
· High brightness, high refresh rate.
· Novastar/HuiDu/Linsn outdoor control system
· Support all signal model inputs such as phone, computer, wireless network, live broadcast, etc.
· Specialized for seamless connection, high contrast, high refresh rate, 16-bit high grayscale.
1. IP65 waterproof, anti-powder, windproof, shockproof
2. Adjustable base structure to ensure viewing of games from different viewing angles
3. MG alloy casting cabinet, thin and lightweight foam, can be used for rental stage LED screen.
4. Soft film protection, protect the athlete’s body from injury, and the LED light will not break
The sports field LED screen is very suitable for crowded places, especially for football or basketball courts. Its high-resolution image and wide viewing angle ensure the best quality pictures and videos with every corner of the stadium LED displays.
The fully sealed cabinet has an inlet protection of up to IP65, which is dust, dust and moisture proof, bringing the inlet protection of stadium LED displays to a new level.
The new door can dissipate heat with the door or the fan.
Special EVA protective pads on the top of the ReissDisplay perimeter LED screen cabinet to protect football players from injuries during the game. The silicone rubber mask is soft and flexible to protect players and balls from injuries. The stable body protects the display from any damage, even high-speed balls or footballs.
" Testimonios de clientes:
Outdoor large LED display [Application field]: sports events [Pixel pitch]: P10 mm [Screen area]: 650 square meters [Related products]: Outdoor large advertising screen [Project Introduction]: outdoor large-screen displays in the field of stadiums is very important. It can not only provide real-time broadcast of the game, but also replay wonderful images so that the audience […]
No hay videos disponibles
| Pixel Pitch | P6.67 | P8 | P10 (2S) | P10 (4S) |
|---|---|---|---|---|
| Model | P6.67 | P8 | P10 | P10 |
| Pixel Configuration | SMD3535 | SMD3535 | SMD3535 | SMD3535 |
| Density (Pixels/㎡) | 22,478 | 15,625 | 10,000 | 10,000 |
| Module Resolution (Pixel) | 48×24 | 40×20 | 32×16 | 32×16 |
| Module Size (mm) | 320×160 | 320×160 | 320×160 | 320×160 |
| Driving Mode (Duty) | 1/6 | 1/5 | 1/2 | 1/4 |
| Cabinet Size (mm) | 1280×960/960×960 | 1280×960/960×960 | 1280×960/960×960 | 1280×960/960×960 |
| Cabinet Weight (KG) | 36 | 36 | 36 | 36 |
| Brightness (CD/㎡) | 6000 | 5500 | 5800 | 4500 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 892 | 600 | 850 | 540 |
| Avg. Power Consumption (W/㎡) | 298 | 200 | 285 | 180 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | 1920 / 3840 | 1920 / 3840 | 1920 / 3840 | 1920 / 3840 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 |
| Protecting Grade | IP65(front),IP54(rear) | IP65(front),IP54(rear) | IP65IP65(front),IP54(rear) | IP65(front),IP54(rear) |
