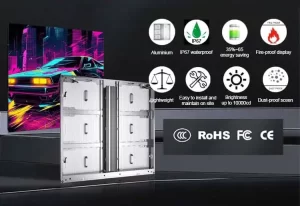

FC series is a high-brightness outdoor LED video wall that can adopt common cathode design. It is a perfect alternative to traditional 960*960mm steel cabinets. It is lightweight, has a reinforced structure, supports fast installation, and can be maintained from front to back. It has IP67 protection level and outdoor durability. With 3840Hz refresh rate, 16-bit color processing and 100,000 hours of service life, it provides reliable and energy-saving performance for large applications.
1. Dimension: 960x960x75mm
2. Energy-Saving with Low Power Consumption;
3. Ultra-Light and Thinness;
4. Simple Structure, Hard Link with Wireless;
5. High Protection Level, Security and Stability;
6. Easy to Realize Front and Rear Maintenance;
7. Great Heat-Dissipation, Strong Environmental Adaptability;

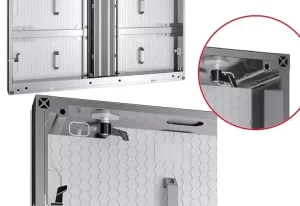

8. Its cabinet is to adopt aluminum profile material, weight is just 26KG, the design of whole cabinet is to utilize technically structure to hide cables, namely, it is hard link, “Wireless Connection”.
9. Its appearance looks more beautiful and easy to operate.

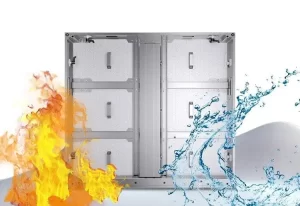

10. Adopt full aluminum material, not easy to be ignited, also can’t be distorted under high temperature condition, fast heat-dissipation, its lampshade is VO standard material with flame resistance.
The vertical and horizontal viewing angles are up to 140 degrees, providing a wide viewing angle. Ultra-wide viewing angle gives you the largest screen viewing area. It provides you with clear and natural images in all directions.
Considering the energy consumption of outdoor advertising LED video wall, thanks to the latest PCB, lCS and power supply design, it is 35%~65 more energy-efficient than traditional outdoor screens. The design of outdoor advertising display screens focuses on energy saving and environmental protection. They have low power consumption, reduce energy costs and minimize carbon footprint.

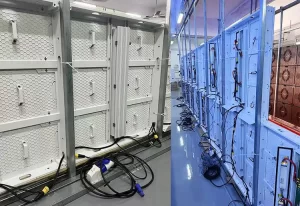

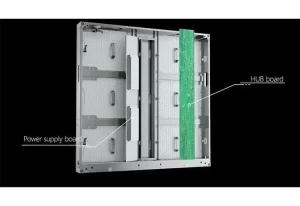

REISSDISPLAY outdoor LED video wall reduces the possibility of cable-induced failures and also makes the entire screen neat and beautiful. The modules and power boxes can be quickly assembled and maintained from the front.

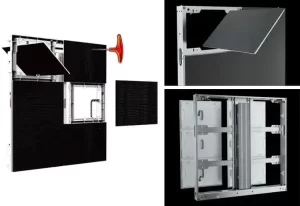

In order to help customers better maintain outdoor LED display billboards, the dual service mode designed on the front and back can save you maintenance costs. The LED panels can be assembled and disassembled easily and quickly.
" Customer Testimonials:
How to Choose an Outdoor LED Display Screen?With their high brightness, excellent display quality, and strong adaptability, these screens perform exceptionally well in outdoor environments.
No videos available.
|
ITEM
|
P4.4
|
P5.7
|
P6.67
|
P8
|
P10
|
|
Pixel Pitch (mm)
|
4.4
|
5.7
|
6.67
|
8
|
10
|
|
LED Type
|
SMD1921
|
SMD2727
|
SMD2727
|
SMD2727
|
SMD2727 / 3535
|
|
Module Resolution (pixels)
|
108×72
|
84×56
|
72×48
|
60×40
|
48×32
|
|
Module Size (mm)
|
480x320x25
|
||||
|
Cabinet Resolution (pixels)
|
216×216
|
168×168
|
144×144
|
120×120
|
96×96
|
|
Cabinet Weight (kg/pcs)
|
25
|
||||
|
Physical Density (pixels/㎡)
|
50625
|
30625
|
22500
|
15625
|
10000
|
|
Optimum Viewing Angle
|
H:140° V:120°
|
||||
|
Optimum Viewing Distance (m)
|
>4.4
|
>5.7
|
>6.67
|
>8
|
>10
|
|
Input Voltage
|
110-220V AC±10%
|
||||
|
Max. Power Consumption (W/㎡）
|
500-720
|
||||
|
Avg. Power Consumption (W/㎡）
|
230-360
|
||||
|

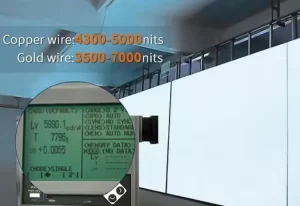

Brightness (cd/㎡)
|
≥5000
|
≥5500
|
≥6500
|
≥6000
|
≥6000
|
|
Refresh Frequency (Hz)
|
1920 / 3840 optional
|
||||
|
Frame Frequency (Hz)
|
50-60
|
||||
|
Grayscale (bit)
|
14-18
|
||||
|
Operating Tempreture/Humidity
(℃/RH)
|
-10℃~50℃ / 10~98%RH
|
||||
