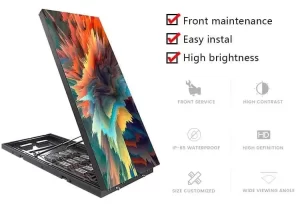

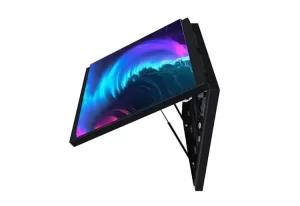

OES-DS Series This cabinet provides a flexible way to access your display, module, control system, power supply or any other component. Double Sided LED Display can access it from the front. It facilitates your maintenance and helps to make full use of the installation space.
Pixel Piitch :2.5mm 3mm 4mm 5mm 6mm 8mm 10mm
√ Easy to maintain
√ Saving Space

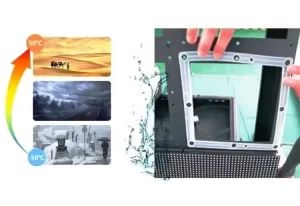

√ IP-65 Waterproof
√ Fixed or Rental Use
√ Size Customized

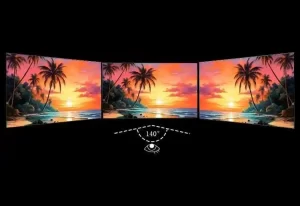

The vertical and horizontal viewing angles are up to 140 degrees, providing a wide viewing angle. Ultra-wide viewing angle gives you the largest screen viewing area. It provides you with clear and natural images in all directions.

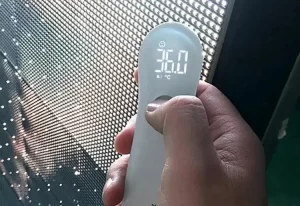

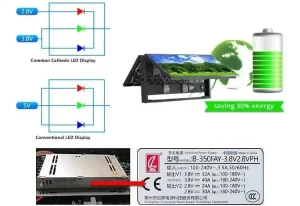

The double-sided LED screen, Advanced common cathode technology with highly efficient ICs can reduce 30%~60% power consumption than conventionalpanels.
45~60kg/sqm, Lightweight design and safe on the wall no matter brick or cement wall

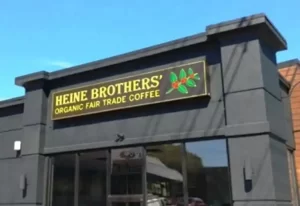

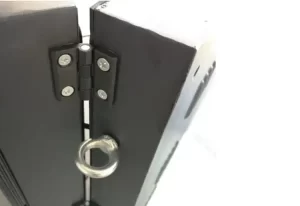

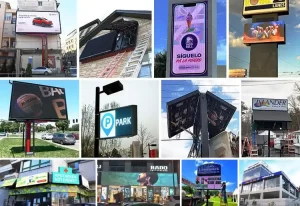

There wil be single front open and double-sided for options. Single one mainly for wall mounted, and double sided is best for billboard on poles.
" Customer Testimonials:
Cleaning Outdoor Advertising LED display Why it is important to clean the outdoor LED display screen? It is important to clean the outdoor LED display screen regularly after screen installation. In outdoor environment, weather is always changing with day and night, rainy and sunny day. With changing environment makes changing temperature which also carry dust, […]
No videos available.
| Pitch | 2.5mm | 3mm | 4mm | 5mm | 6mm |
| Module Size | 320*160mm | 192*192mm | 256*128mm | 320*160mm | 192*192mm |
| Module Resolution | 128*64 | 64*64 | 64*32 | 64*32 | 32*32 |
| LED Type | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD3535 |
| Brightness | 5000 Nits | 5500 Nits | 5500 Nits | 6000 Nits | 7000 Nits |
| Pixel Density/m2 | 160000 | 111111 | 62500 | 40000 | 27777 |
| Driving Method | 1/16 Scan | 1/16 Scan | 1/8 Scan | 1/8 Scan | 1/4 Scan |
| Optimal View Distance | 2-8m | 3-10m | 4-13m | 5-16m | 6-20m |
| Avg. Power | 430W/m2 | 460W/m2 | 500W/m2 | 310W/m2 | 350W/m2 |
| Max. Power | 950W/m2 | 980W/m2 | 1100W/m2 | 700W/m2 | 780W/m2 |
| IC | MBI5124 / ICN2153 | ||||
| Refresh Rate | 1920-3840Hz | ||||
| Brightness Control | 256 Grade/Each Color | ||||
| View Angle | 140° | ||||
| Ingress Protection | IP65 | ||||
| Input Voltage | AC110/220V, 50/60Hz | ||||
| Operating Temp. | -30℃~60℃ | ||||
| Gross Weight | 50Kg/m2 | ||||
| Life Span | 100000 Hours | ||||
