What is LED display module?

What is an LED Display Module?

An LED display module is a self-contained component that integrates multiple LEDs for use in larger displays. These modules serve as the building blocks of LED screens, offering flexibility and scalability for various applications, from digital billboards to sports venue scoreboards.

Definition and Overview

LED display modules consist of Light Emitting Diodes (LEDs) arranged in a matrix pattern, allowing them to create images or text by illuminating individually. The circuitry includes drivers and control systems that manage the operation of the LEDs, ensuring accurate and synchronized illumination. The housing protects the internal components and provides mounting options, making the modules suitable for both indoor and outdoor installations.

LED modules function by illuminating individual LEDs to form images or text. The control system sends signals to the drivers, which then activate the LEDs according to the desired display configuration.

Types and Classification

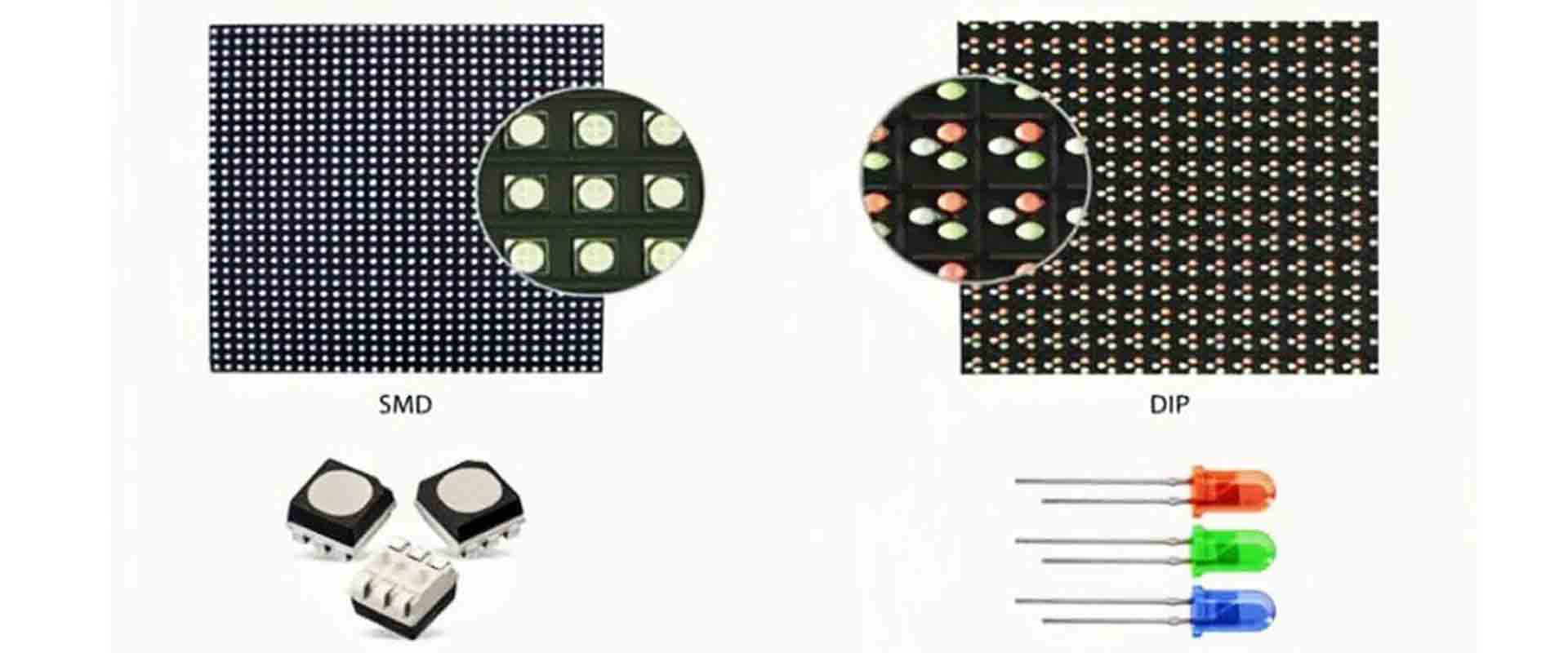

LED display modules can be classified into monochrome and full-color variants. Monochrome modules display a single color, typically used for simple informational displays, while full-color modules can display a wide range of colors, ideal for dynamic and detailed visual presentations. Surface Mount Device (SMD) and Dual In-line Package (DIP) are two common types of LED modules, with SMD featuring compact LEDs mounted directly onto the printed circuit board (PCB), and DIP utilizing larger LEDs with leads inserted into holes on the PCB.

LED display modules can also be classified based on usage. Indoor LED modules are tailored for close viewing distances with high resolution and are suitable for indoor settings where high brightness is not required. Outdoor LED modules are built to withstand harsh weather conditions and optimized for visibility in bright sunlight.

Technical Specifications

The resolution of an LED display module is determined by the number of pixels, which affects clarity and detail. Pixel pitch, the distance between the centers of adjacent pixels, influences the sharpness and clarity of the displayed image. LED modules vary in brightness and contrast capabilities, which are crucial for visibility and readability in different lighting conditions. High color accuracy and uniformity ensure that the displayed content appears consistent and vivid, enhancing the overall visual experience.

Installation and Maintenance

LED modules offer various mounting options, such as wall-mounted brackets or ceiling fixtures, suitable for different installation environments. Proper connection to power and control systems is essential for the seamless operation of LED displays. Keeping the modules clean is important for maintaining optimal performance and preventing dust accumulation. Quick diagnostics can help identify and resolve issues with the display, ensuring minimal downtime.

Application Scenarios

LED modules are widely used in indoor advertising and information displays, providing dynamic content in retail spaces and commercial areas. Outdoor LED modules are commonly found in sports venues, where they serve as scoreboards and provide real-time updates and advertisements.

Future Development Trends

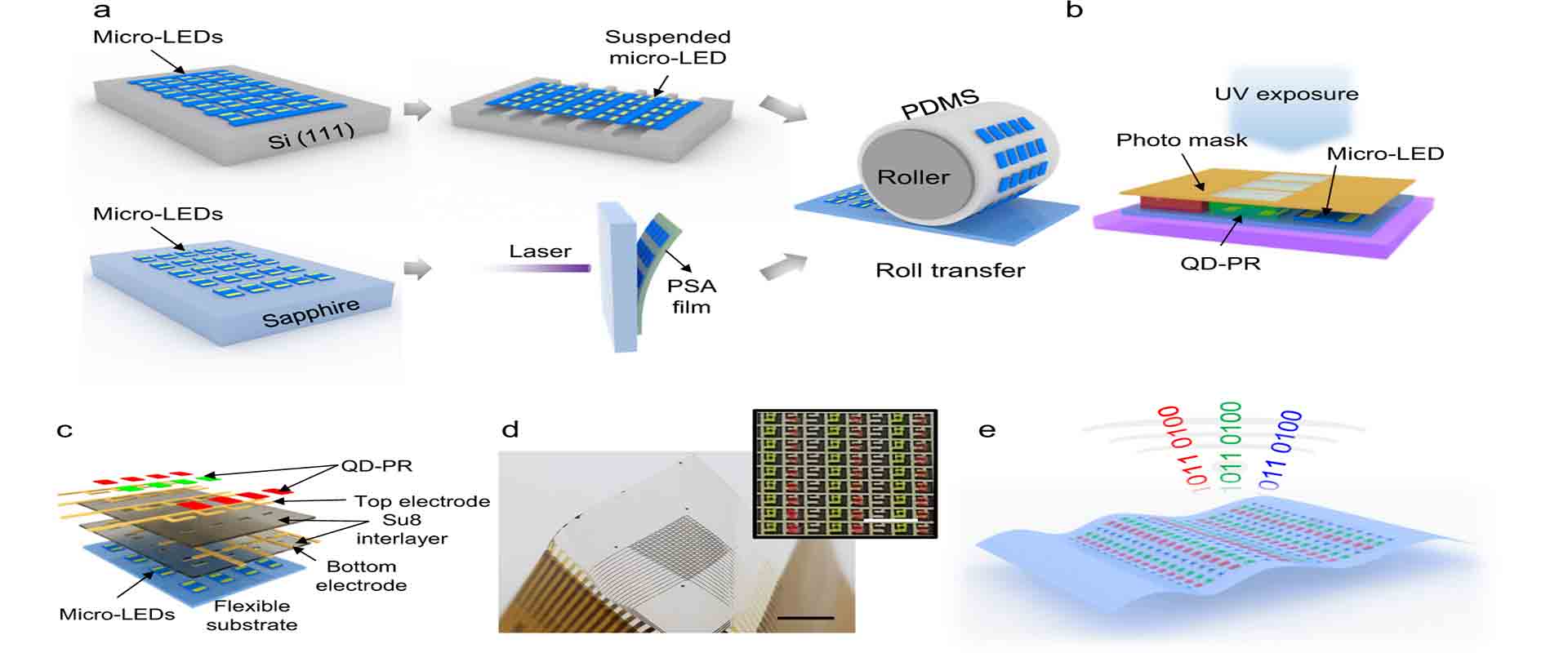

Micro-LED technology promises to revolutionize the LED display industry with improved resolution, brightness, and energy efficiency. The potential integration of LED modules with the Internet of Things (IoT) could enable smarter and more interactive displays, enhancing user engagement and data collection capabilities.

Conclusion

LED display modules are versatile and essential components for creating high-quality LED screens. Understanding their components, types, and technical specifications is key to choosing the right module for any application. Selecting the appropriate LED display module involves considering the intended use, environmental factors, and desired performance characteristics. Whether for indoor advertising or outdoor sporting events, the right LED module can transform any space into a vibrant and engaging visual experience.
