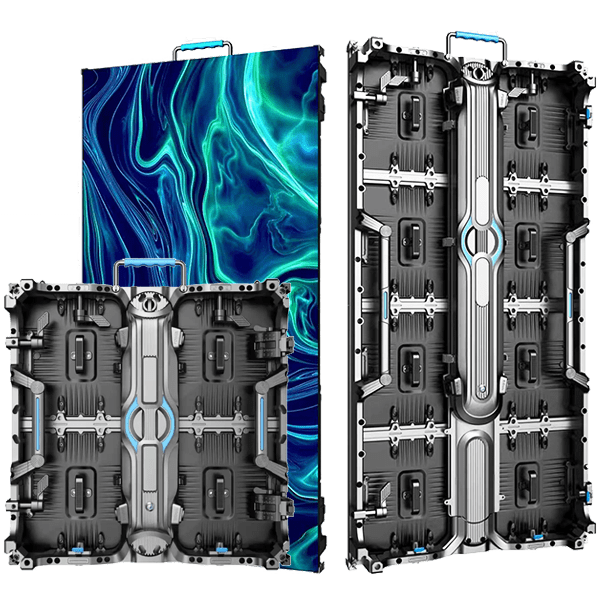

Stage LED Display Screen -RF-PRO+ Series

Professional manufacturer of fast maintenance and rental high-definition stage LED displays, usually used for large-scale stage events and large screens for World Cup games.

- Ultra-thin design

- Removable back cover

- High-precision curve lock, arc installation

- LED corner protection

- Magnetic module modules are arranged regardless of left and right

- High outdoor waterproof

Quick Request
Appointment customization

Your current location:

Stage LED Display-The Creative Possibilities Are Endless!

إعادة العرض stage LED display is suitable for every large – scale event Stage background led screen. Bring different visual effects to the event venue.

LED Screen Wall team will cooperate better with our customers and provide the best solution.which can be customized in any size and model. To meet your needs.

LED screen for events led video wall we provide: We will provide professional customized services.

ReissDisplay Every LED display Panels applications include concerts, fashion shows, concerts, music festivals, sports events, exhibitions, commercial releases, super parties and other LED display Screen solutions.

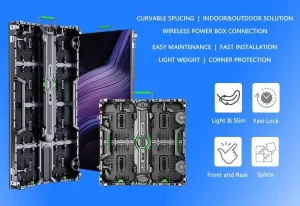

Stage LED Display Engineered for Flawless Visual Impact

– Available in multiple panel sizes 500x500mm, 500x1000mm die-cast aluminum
– Excellent Performance
– Seamless Display and Better Visual Effects
– Aluminum Cabinet, Lightweight, Safetyand – Reliability, No Distortion
– Easy to Install and Maintain
– High Performance Driving IC
– Ultra-thin design
– Removable back cover
– High-precision curve lock, arc installation
– LED corner protection
– Magnetic module modules are arranged regardless of left and right
– High outdoor waterproof

High Refresh Rate Smoother Stage LED Screen

High refresh rate of 3840Hz, clearer display, no flash screen, no jitter, no drag screen display more smooth and stable.

rental led wall

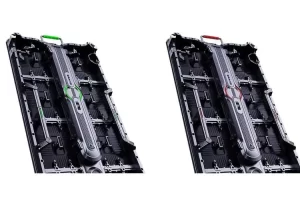

Color

Two different color theme for your option.

led rental board

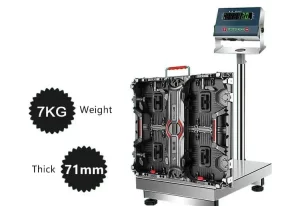

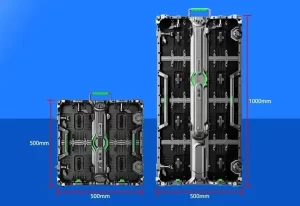

Ultra-light And Slim Design

The standard cabinet size is 500x500mm/500x1000mm (1.64×1.64ft/1.64×3.28ft), suitable for 250x250mm standard size modules, made of ultra-light die-cast aluminum, with a thickness of only 71mm, which is convenient for transportation and carrying.
led Stage board

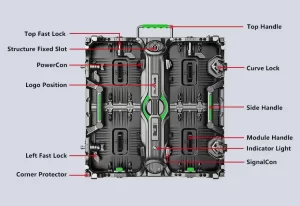

UPerfect Lightweight Cabinet Design

From cabinet handles, fixing slots, to quick locks, magnetic modules, mounting knobs, and removable power supply boxes, every detail reflects excellent design principles.

led stage screen

Lightweight, Ultra-thin

As the cabinet uses aluminum material, the weight of the panel is only 7kg/12kg, and it has great heat dissipation.

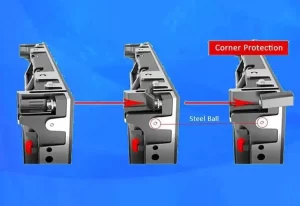

LED Corner Protectors

RF-PRO+ Series front service LED signs have four corner protectors at each corner to prevent LED damage, and the foldable design is safer for transportation, installation, operation, and assembly and disassembly, and is easy to use.

Wide Viewing Angle

With wide viewing angle capability (160° h/V) and wide visual coverage ensure optimal visibility from every vantage point.

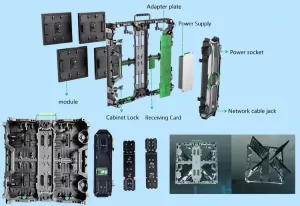

Double Maintenance Design

Front and rear maintenance rental LED display screen uses magnets to absorb LED panels, module installation knobs, power and signal connectors, detachable power supply boxes, etc. The cabinet adopts front and rear design, and the LED panel is easy to install. The power box and HUB board are detachable hard connection design, double sealing rubber ring high IP65 waterproof, and quick installation buckles are used for the installation and removal of the back cover.

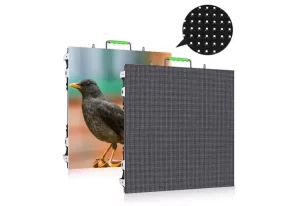

Full Color Stage LED Display

ReissDisplay stage LED display, clearer picture, using high-quality lamp beads, high LED chips, longer service life.

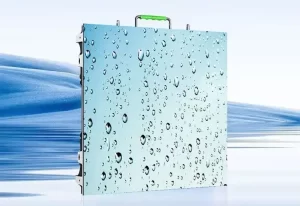

Waterproof Stage LED Display

Outdoor Stage LED display supports Ip65 dustproof and waterproof, it can resists severe weather conditions during outdoor activities. And die-cast aluminum is corrosion resistant.

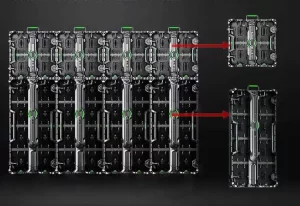

Mixed And Match

500x500mm and 500x1000mm cabinets canbe easily connected horizontally and vertically for different configurations.

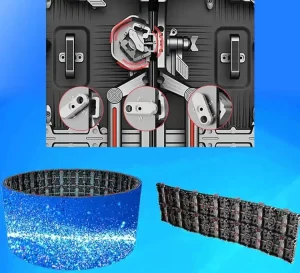

High-precision Curve Lock

High precision curve lock (-10° to +10°) can make curve LED screen seamless. Rotational control makes it easier to faster to adjust curve degree. It can used for curved stage backdrop.

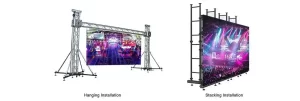

Stacking And Hanging System Optional

Hanging and Stacking Avaiable : can meet the different demands of movable occasions with hanging bar or back bracket

Application Cases

How to choose high-quality rental LED screens

How to choose high-quality rental LED screens

" Customer Testimonials:

Choosing High-Quality Rental LED Screens Resolution Selecting quality LED Rental Screens requires careful consideration of key factors. Our Display Rental Solutions combine reliability with outstanding performance. Through Professional Rental Technology, we ensure exceptional event experiences. Key Points: Pixel Density: More pixels per inch mean a clearer picture. Minimum Resolution: Aim for Full HD for standard […]

How to configure a large stage LED screen

How to configure a large stage LED screen

" Customer Testimonials:

Learn how to choose the right size and resolution for a large stage LED screen that meets your event's needs and audience viewing distance.

Application and Installation Videos

Application Videos

Application Videos

Specifications
1. Basic Parameters
Pixel Pitch 1.56 1.953 2.604 2.976 3.91
Module Size 250*250mm 250*250mm 250*250mm 250*250mm 250*250mm
Resolution/Pixels 160*160 128*128 96*96 84*84 64*64
LED (HS/RS/NATIONSTAR) SMD1212 SMD1515 SMD1515 SMD1515 SMD2020
Driver IC DP3264S/ICN1065S DP3153/ICN2153 DP3153/ICN2153 DP3153/ICN2153 DP3153/ICN2153
Driver Mode 1/40 1/32 1/32 1/28 1/16
2. Electricity Parameters
Brightness 550 550 550 550 550
Gray Scale 8bits input, correction with 16bits
Display Color 16.7M
View Angle 140 degree ( horizontal) 140degree(vertical)
View Distance 2m-30m
3. Driver Power Supply
Operation Power AC100-240V 50-60HZ Switch-able
Maxim Power Consumption 1000 W/m2
Average Power Consumption 450 W/m2
4. Control System
Refresh Frequency 3840Hz 3840Hz 3840Hz 3840Hz 3840Hz
Correction Scale Level 16bits
Frame Update Frequency 60Hz
Gamma Correction -5.0—5.0
Color Temperature 5000-9300 adjustable
Support Input Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance Ethernet cable 100m, optical fiber 5km
Support VGA Mode 800×600,1024×768,1280×1024,1600×1200
5. Reliability
Operating Temp -20-60 Celsius Degrees
Operating Humidity 10-95% RH
Operating Life 100,000 hours
MTBF 5000 hours
Protection Level IP43
Out of Control Pixel Rate 0.01%
Continuous Working Time ≥48 hours
1. Basic Parameters
Pixel Pitch 2.604 2.976 3.91 4.81
Module Size 250*250mm 250*250mm 250*250mm 250*250mm
Resolution/Pixels 96*96 84*84 64*64 52*52
LED (HS/RS/NATIONSTAR) SMD1415 SMD1415 SMD1921 SMD1921
Driver IC DP3153/ICN2153 DP3153/ICN2153 DP3153/ICN2153 DP3153/ICN2153
Driver Mode 1/24 1/21 1/16 1/13
2. Electricity Parameters
Brightness ≥4000cd ≥≥4000cd ≥4000cd ≥4000cd
Gray Scale 8bits input, correction with 16bits
Display Color 16.7M
View Angle 140 degree ( horizontal) 140degree(vertical)
View Distance 3m-30m
3. Driver Power Supply
Operation Power AC100-240V 50-60HZ Switch-able
Maxim Power Consumption 1000 W/m2
Average Power Consumption 450 W/m2
4. Control System
Refresh Frequency 3840Hz 3840Hz 3840Hz 3840Hz
Correction Scale Level 16bits
Frame Update Frequency 60Hz
Gamma Correction -5.0—5.0
Color Temperature 5000-9300 adjustable
Support Input Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance Ethernet cable 100m, optical fiber 5km
Support VGA Mode 800×600,1024×768,1280×1024,1600×1200
5. Reliability
Operating Temp -20-60 Celsius Degrees
Operating Humidity 10-95% RH
Operating Life 100,000 hours
MTBF 5000 hours
Protection Level IP65
Out of Control Pixel Rate 0.01%
Continuous Working Time ≥48 hours

Module

250×250 mm

Pixel Pitch

P1.56 / P1.9 / P2.604 / P2.976 / P3.91

Cabinet Size

500x500mm/500mmx1000mm

Cabinet Weight

7kg/12kg

Cabinet Material

Die Cast Aluminum

Applicable Environment

Indoor / Outdoor

Standard Fittings

Power Airplug，Signal Airplug

configuration
