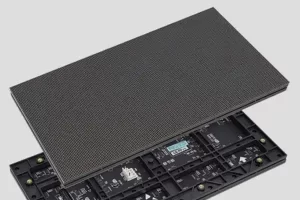

Introduction to Indoor LED Display Module
The indoor LED screen modules utilize highly stable driver ICs to ensure exceptional performance and color uniformity across the entire display surface. These advanced driver ICs play a crucial role in regulating the current flowing to each individual LED, preventing color differences and delivering clear, lifelike images.
The indoor LED display module boasts high definition and high refresh rate capabilities. The smaller the pixel pitch, the more pixels packed into a unit area, resulting in clearer and crisper image quality. The higher the resolution of the LED display, the more stunning and lifelike the visuals will be.
(1) Indoor LED module protection level: IP54, ensuring reliable performance in indoor environments.
(2) Indoor full-color brightness ranging from 600-1,200cd/m2, delivering vibrant and eye-catching visuals.
(3) Refresh rates that can be customized to 1920Hz, 3840Hz, or even 7680Hz, ensuring a smooth and flicker-free viewing experience.
(4) Low power consumption and natural ventilation/heat dissipation, making the indoor display module energy-efficient and easy to maintain.
The indoor LED display modules offer a wide range of pixel pitches, including P2mm, P2.5mm, P3mm, P3.91mm, P4mm, P4.81mm, P5mm, P6mm, P6.72mm, and P10mm, catering to various application needs. Additionally, the small pixel series includes P0.9mm, P1.25, P1.56, P1.875mm, P1.25mm, P1.538mm, P1.667mm, and P1.86mm, providing exceptional detail and resolution.

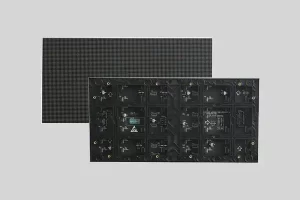

Standard Sizes of LED Modules
The indoor LED display modules come in a variety of standard sizes, including:
320 x 160mm
256 x 128mm
320 x 320mm
250 x 250mm
192 x 192mm
160 x 160mm
Additionally, magnetic modules are also available for easy installation and customization.
The indoor LED display module is designed to provide a high contrast ratio, perfectly suited for indoor environments. This high contrast ratio delivers stunning visuals while protecting the human eyes, making it an ideal solution for various applications.

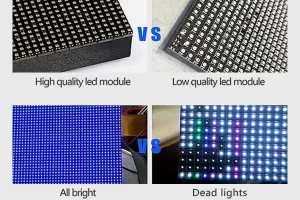

REISSDISPLAY LED display panels stand out from the competition with their high quality, customizability, and versatility. Featuring advanced characteristics such as high-brightness lamp beads, high-density PCB boards, and a customizable design, these LED displays are engineered to meet the diverse needs of modern businesses and events. Durable and easy to install, REISSDISPLAY LED displays are the perfect choice for those seeking to make a lasting impression.

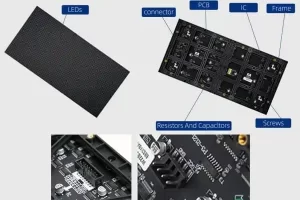

The LED display module is a crucial component of the LED display finished product. It is primarily composed of LED, IC, frame, PCB, connector, cable, screws, resistor, and capacitor, all meticulously engineered to work in harmony and deliver exceptional performance.
The indoor LED display modules are designed with high-quality LED chips from renowned manufacturers such as Kinglight, San’an, Hongseng, and Nationstar, ensuring excellent color consistency and vivid visuals.

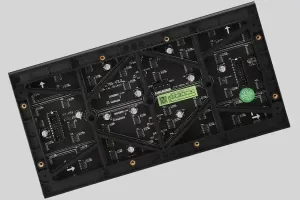

The implementation of advanced driver ICs, including MBI5124, ICN2053, ICN2038S, and FM6153, ensures high refresh rates, high grayscale levels, and stable operation, eliminating the risk of flickering and guaranteeing a smooth and reliable performance.
The carefully selected LED driver ICs used in the indoor LED display modules deliver high refresh rates of over 1920Hz, and even up to 3840Hz, effectively eliminating module flicker problems and providing a seamless viewing experience.

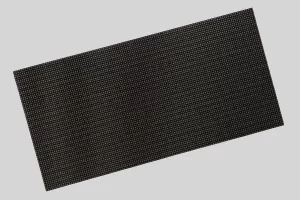

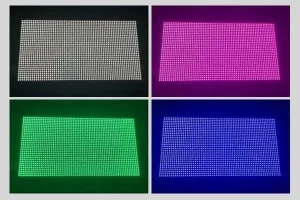

Utilizing cutting-edge SMD (Surface-Mount Device) encapsulation technology, the indoor LED display modules combine individual red, green, and blue LED chips (1R1G1B) in each pixel, resulting in vivid and precise color rendering.
The integration of black LEDs and a black PCB frame in the indoor LED display module effectively reduces light reflection, enhances contrast, ensures color consistency, and provides a truer color representation, delivering a superior visual experience.
By exclusively partnering with top-tier materials suppliers like Kinglight and Nationstar, REISSDISPLAY ensures that its indoor LED modules adhere to the highest quality standards in the industry.

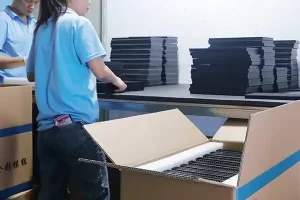

In terms of shipping, high-quality PVC polyethylene foam boards are used to pack each indoor LED screen module, ensuring they are not damaged and protected from impacts that could cause the LEDs to fall out during transportation, guaranteeing the safe arrival of the product.
Power Cable：Contains standard 4Pin power cable for connecting module and power supply.
Data Flat Cable：Industry standardized 16Pin LED display flat data cable (signal cable) will be provided free of charge to save cost.
Screws：Strong and durable fixing screws such as M3, M4 for installing indoor LED display module.
" Customer Testimonials:
LED display module is composed of LED lights, PCB circuit boards, driver ICs, resistors, capacitors, and plastic kits.
No videos available.
| Pixel Pitch | LED | Module Resolution | LED Type | Brightness(Nits) | Module Size（MM） | Driving Mode |
| P1.25mm | 1010 (Black LED) | 256*128 | SMD 3in1 | 600-800 | 320*160 | 1/64Scan |
| P1.538mm | 1010 (Black LED) | 208*104 | SMD 3in1 | 600-800 | 320*160 | 1/52Scan |
| P1.667mm | 1010 (Black LED) | 192*96 | SMD 3in1 | 600-800 | 320*160 | 1/64Scan |
| P1.839mm | 1515 (Black LED) | 174*87 | SMD 3in1 | 600-800 | 320*160 | 1/58Scan |
| P1.839mm | 1515 (Black LED) | 174*87 | SMD 3in1 | 600-800 | 320*160 | 1/58Scan |
| P1.86mm | 1515 (Black LED) | 172*86 | SMD 3in1 | 600-800 | 320*160 | 1/43Scan |
| P2mm | 1515 (Black LED) | 160*80 | SMD 3in1 | 600-800 | 320*160 | 1/40Scan |
| P2.5mm | 2121 (Black LED) | 128*64 | SMD 3in1 | 800-1000 | 320*160 | 1/32Scan |
| P3.076mm | 2121 (Black LED) | 104*52 | SMD 3in1 | 800-1000 | 320*160 | 1/26Scan |
| P4mm | 2121 (Black LED) | 80*40 | SMD 3in1 | 600-800 | 320*160 | 1/20Scan |
| P5mm | 2121 (Black LED) | 64*32 | SMD 3in1 | 600-800 | 320*160 | 1/16Scan |
| Pixel Pitch | LED | Module Resolution | LED Type | Brightness(Nits) | Module Size（MM） | Driving Mode |
| P2.604mm | 1515 (Black LED) | 96*96 | SMD 3in1 | 800-1000 | 250*250 | 1/32Scan |
| P2.976mm | 2121 (Black LED) | 84*84 | SMD 3in1 | 800-1000 | 250*250 | 1/16Scan |
| P3.91mm | 2121 (Black LED) | 64*64 | SMD 3in1 | 800-1000 | 250*250 | 1/16Scan |
| P4.81mm | 2121 (Black LED) | 52*52 | SMD 3in1 | 800-1000 | 250*250 | 1/13Scan |
| Pixel Pitch | LED | Module Resolution | LED Type | Brightness(Nits) | Module Size（MM） | Driving Mode |
| P1.875mm | 1515 (Black LED) | 128*128 | SMD 3in1 | 800-1000 | 240*240 | 1/32Scan |
| P2.5mm | 2121 (Black LED) | 96*96 | SMD 3in1 | 800-1000 | 240*240 | 1/32Scan |
| Pixel Pitch | LED | Module Resolution | LED Type | Brightness(Nits) | Module Size（MM） | Driving Mode |
| P2mm(MOQ>100) | 1515 (Black LED) | 64*64 | SMD 3in1 | 800-1000 | 128*128 | 1/32Scan |
| P2mm | 1515 (Black LED) | 128*64 | SMD 3in1 | 800-1000 | 256*128 | 1/32Scan |
| P2.5mm(MOQ>100) | 2121 (Black LED) | 64*32 | SMD 3in1 | 800-1000 | 160*80 | 1/16Scan |
| P2.5mm | 2121 (Black LED) | 64*64 | SMD 3in1 | 800-1000 | 160*160 | 1/32Scan |
| P3mm(MOQ>100) | 2121 (Black LED) | 64*32 | SMD 3in1 | 800-1000 | 192*96 | 1/16Scan |
| P3mm | 2121 (Black LED) | 64*64 | SMD 3in1 | 800-1000 | 192*192 | 1/32Scan |
| P4mm(MOQ>100) | 2121 (Black LED) | 32*32 | SMD 3in1 | 800-1000 | 128*128 | 1/8Scan |
| P4mm | 2121 (Black LED) | 64*32 | SMD 3in1 | 800-1000 | 256*128 | 1/16Scan |
| P4mm | 2121 (Black LED) | 64*64 | SMD 3in1 | 800-1000 | 256*256 | 1/32Scan |
| P5mm(MOQ>100) | 2121 (Black LED) | 64*32 | SMD 3in1 | 800-1000 | 160*160 | 1/16Scan |
| P5mm | 3528 (White LED) | 64*32 | SMD 3in1 | 800-1000 | 160*160 | 1/16Scan |
| P5mm | 3528 (White LED) | 64*32 | SMD 3in1 | 800-1000 | 320*160 | 1/16Scan |
